Wall-mounted Air Conditioner HSC 24TMU 2022

Wall-mounted Air Conditioner HSC 24TMU 2022


- Fast cooling, quiet operation

- Auto Diagnosis, Inverter technology for energy saving

- Cooling

- Suitable for area: 30m² - under 40m² ( < 120 m³)

Funiki HSC 24TMU is new model launched in 2022 which is equiped with outstanding fuctions to ensure not only the best working performance but also durability. Its elegant design is perfect to all room interior design.

Fast Cooling with Turbo Mode

The user presses the Turbo button on the remote to activate Fast Cooling/Heating mode.

Self diagnosis

The error code displayed on the LED screen of indoor unit makes maintenance quick and easy.

Superior design for outdoor unit

Funiki air conditioners use copper tubes in the outdoor unit, which are more durable than other common materials. The radiator on the indoor and outdoor units are plated with a protective cover that is more resistant to rust and corrosion than conventional plating. Therefore, it helps increase machine life and prevents bacteria from proliferating and spreading effectively.

Wind direction with wide angle

The louver of the air conditioner is designed flexibly to an extended angle, which helps to increase the flow of cold air blown out, significantly increases the cooling capacity. Fan mode, wind direction with wide angle shall cool faster, increase exposure to cool air to all corners of the room, save energy and bring the most comfortable feeling for users.

Quiet operation

The noise level of the Funiki air conditioner motor during operation is reduced to only 25dB, equivalent to the silence in a library. As a result, the whole family has a good night's sleep without being disturbed by noises coming from the air conditioner.


Heat capacity - Cooling (W)




Cooling Seasonal Performance Factor (CSPF)

30m² - under 40m² ( < 120 m³)

Usable area

Detailed product parameters: Wall-mounted Air Conditioner HSC 24TMU 2022

Model  HSC 24TMU
Type Cooling
Usable Area 30m² - under 40m² ( < 120 m³)


Parameters  Unit HSC 24TMU
Type    Cooling
 Refrigerant/weight   R32/1300
Capacity (Cooling)  W 7034
Cooling Seasonal Performance Factor (CSPF)   3,3
Powersupply  Phase    1 Ph
Rated Current  A 10,56
Input  W 2312

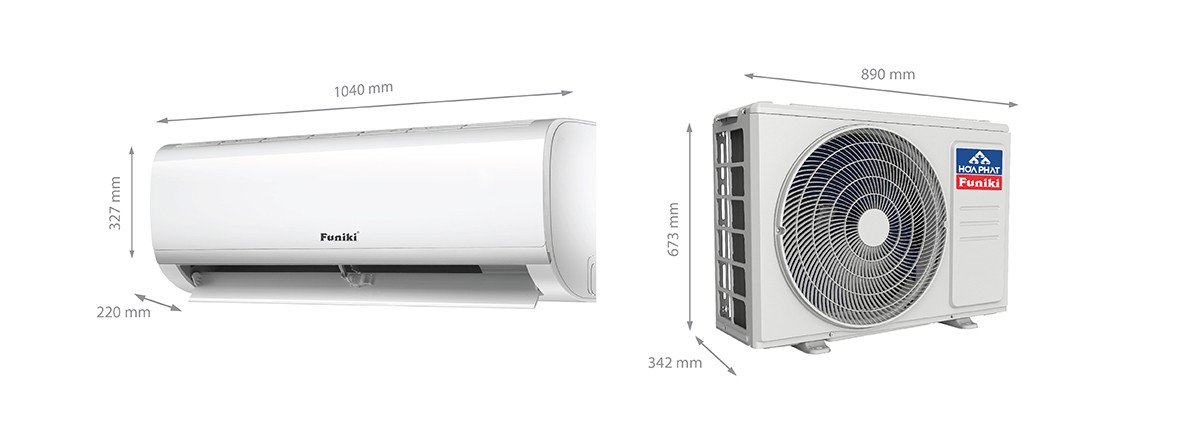

Product dimension (WxDxH) Indoor Unit  mm 1040x220x327
Outdoor Unit  890x342x673
Packing dimension (WxDxH) Indoor Unit  mm 1120*405*315
Outdoor Unit  995*398*740
Weight (Net/Gross) Indoor Unit  kg 13.5/16.9
Outdoor Unit  51.8/55
Refrigerant piping Liquid Side  mm 15,90
Gas Side 9,52
Indoor Air Flow (High/Medium/Low) m³/h 1070/967/805
Gas pipeline limit Standard pipe length  m 4
Max. pipe length  m 25
Max. different in level m 10
Power supply (Indoor/Outdoor unit)   Indoor Unit
