Wall-mounted Air Conditioner Heating&Cooling HSH 12TMU 2022

Wall-mounted Air Conditioner Heating&Cooling HSH 12TMU 2022


- Fast cooling, quiet operation

- Auto Diagnosis, Inverter technology for energy saving

- Cooling & Heating

- Suitable for area: 15m² - 20m² (≤ 60 m³)

Funiki HSH 09TMU is new model launched in 2022 which is equiped with outstanding fuctions to ensure not only the best working performance but also durability. Its elegant design is perfect to all room interior design.

Fast Cooling with Turbo Mode

The user presses the Turbo button on the remote to activate Fast Cooling/Heating mode.

Heating & Cooling

Wall-mounted Air Conditioner Funiki bring the convenience to the customer in two way Heating & Cooling system

Self diagnosis

The error code displayed on the LED screen of indoor unit makes maintenance quick and easy.

Superior design for outdoor unit

Funiki air conditioners use copper tubes in the outdoor unit, which are more durable than other common materials. The radiator on the indoor and outdoor units are plated with a protective cover that is more resistant to rust and corrosion than conventional plating. Therefore, it helps increase machine life and prevents bacteria from proliferating and spreading effectively.

Wind direction with wide angle

The louver of the air conditioner is designed flexibly to an extended angle, which helps to increase the flow of cold air blown out, significantly increases the cooling capacity. Fan mode, wind direction with wide angle shall cool faster, increase exposure to cool air to all corners of the room, save energy and bring the most comfortable feeling for users.

Quiet operation

The noise level of the Funiki air conditioner motor during operation is reduced to only 25dB, equivalent to the silence in a library. As a result, the whole family has a good night's sleep without being disturbed by noises coming from the air conditioner.


Capacity: Cooling/Heating (W)




Cooling Seasonal Performance Factor (CSPF)

15m² - 20m² (≤ 60 m³)

Usable area

Detailed product parameters: Wall-mounted Air Conditioner Heating&Cooling HSH 12TMU 2022

Model  HSH 12TMU
Type Cooling&Heating
Usable Area 15m² - 20m² (≤ 60 m³)


Parameters  Unit HSH 12TMU
Type    Cooling&Heating
Refrigerant/weight   R32/530
Capacity  Cooling W 3202
Heating 3224
Cooling Seasonal Performance Factor (CSPF)   3.1
Powersupply  Phase    1 Ph
Rated Current (Cooling)  A 4.9
Rated Current (Heating)  5.12
Input (Cooling) W 1096
Input (Heating) 1104

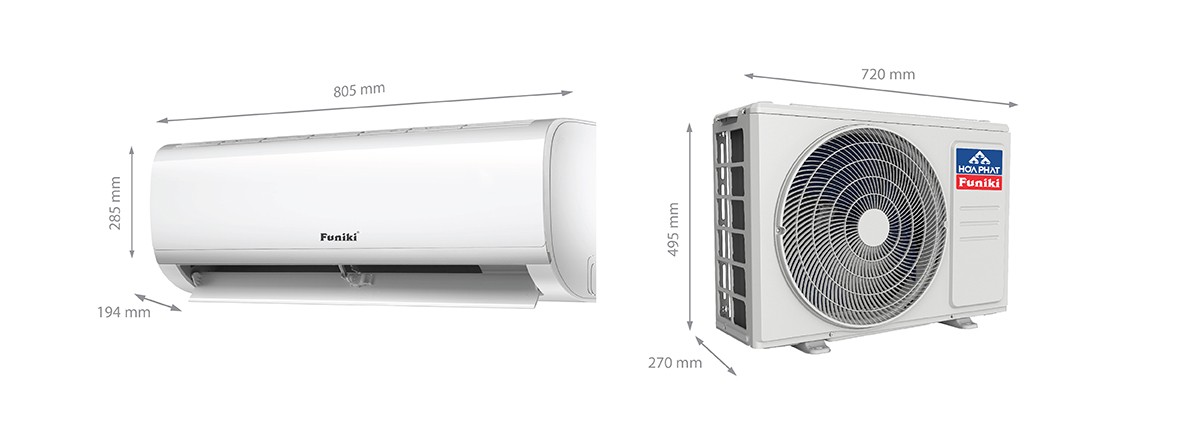

Product dimension (WxDxH) Indoor Unit  mm 805x194x285
Outdoor Unit  720x270x495
Packing dimension (WxDxH) Indoor Unit  mm 870x270x365
Outdoor Unit  835x300x540
Weight (Net/Gross) Indoor Unit  kg 8.1/10.3
Outdoor Unit  25.6/27.4
Refrigerant piping Liquid Side  mm 12,7
Gas Side 6,35
Indoor Air Flow (High/Medium/Low) m³/h 540/420/340
Gas pipeline limit Standard pipe length  m 3
Max. pipe length  m 15
Max. different in level m 5
Power supply (Indoor/Outdoor unit)   Indoor Unit
