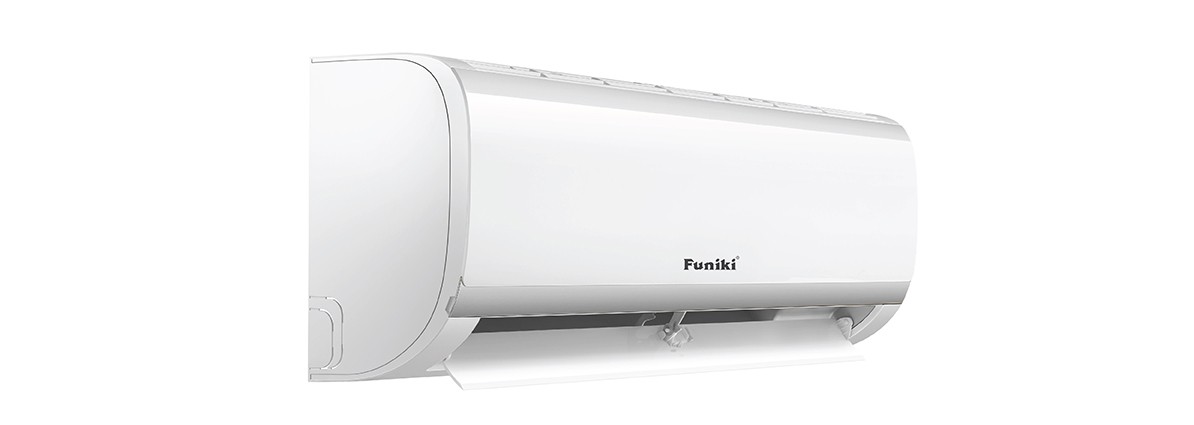

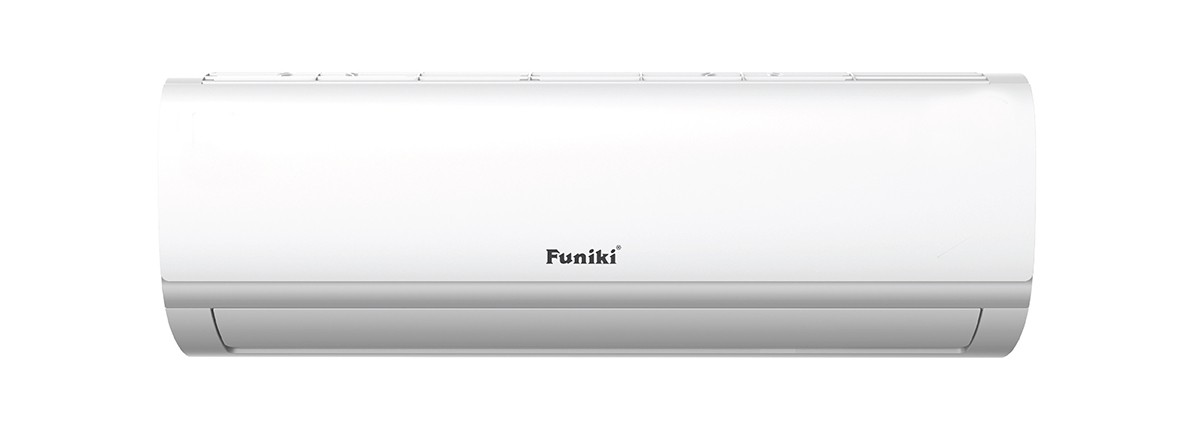

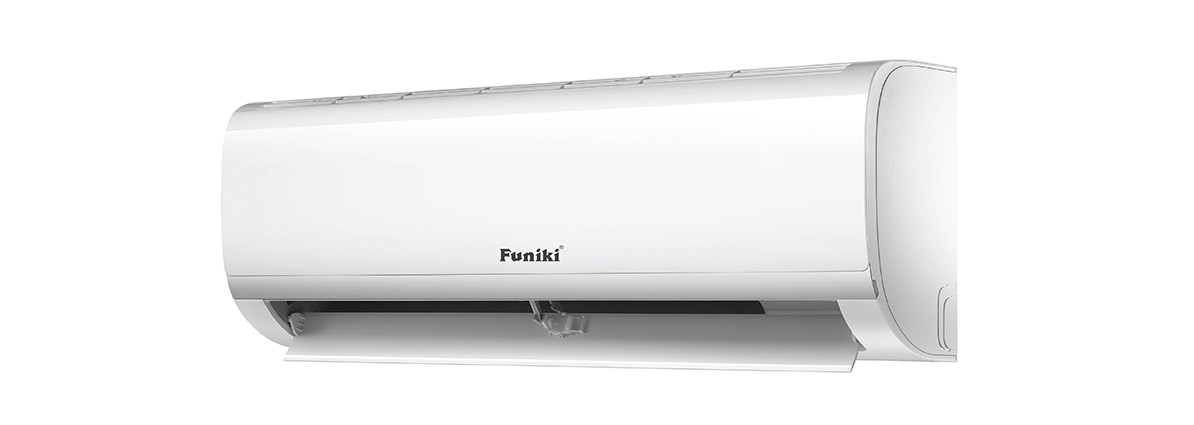

Wall-mounted Air Conditioner Heating&Cooling HSH 10TMU 2022
SKU: HSH 10TMU
- Fast cooling, quiet operation
- Auto Diagnosis, Inverter technology for energy saving
- Cooling & Heating
- Suitable for area: ≤15m² (≤ 45 m³)
Funiki HSH 09TMU is new model launched in 2022 which is equiped with outstanding fuctions to ensure not only the best working performance but also durability. Its elegant design is perfect to all room interior design.
Fast Cooling with Turbo Mode
The user presses the Turbo button on the remote to activate Fast Cooling/Heating mode.
Heating & Cooling
Wall-mounted Air Conditioner Funiki bring the convenience to the customer in two way Heating & Cooling system
Self diagnosis
The error code displayed on the LED screen of indoor unit makes maintenance quick and easy.

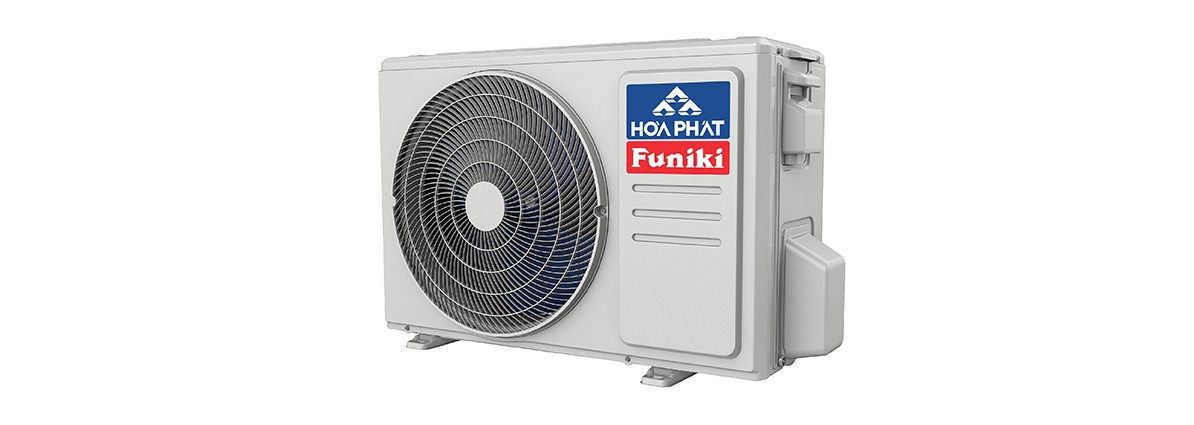

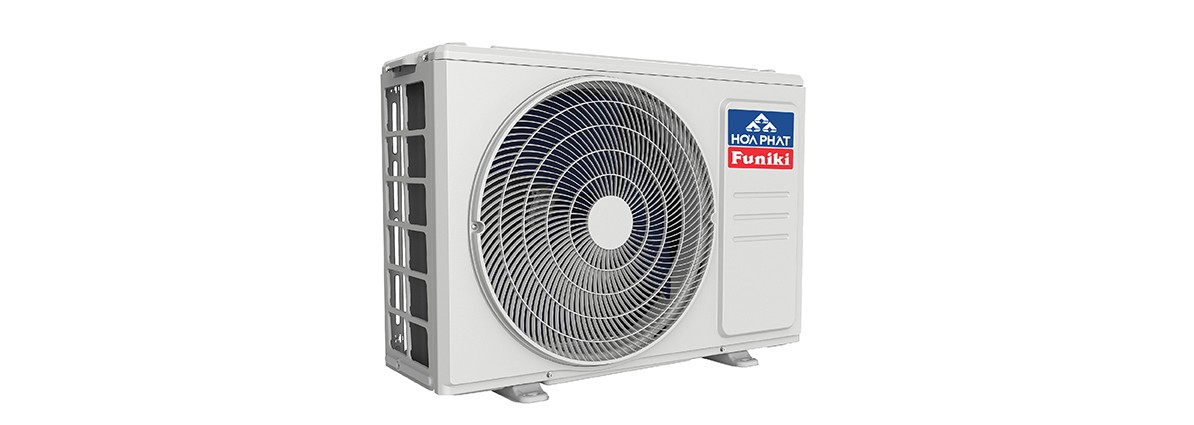

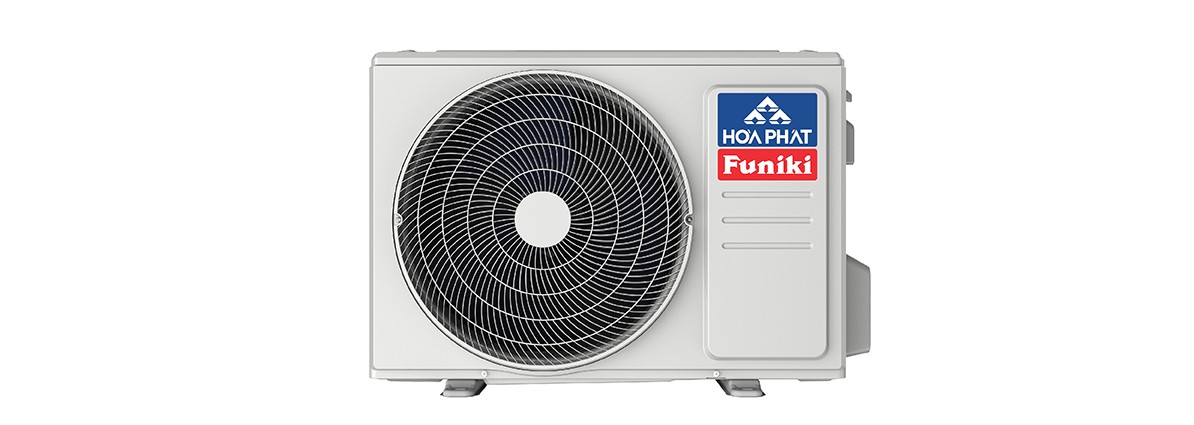

Superior design for outdoor unit
Funiki air conditioners use copper tubes in the outdoor unit, which are more durable than other common materials. The radiator on the indoor and outdoor units are plated with a protective cover that is more resistant to rust and corrosion than conventional plating. Therefore, it helps increase machine life and prevents bacteria from proliferating and spreading effectively.
Wind direction with wide angle
The louver of the air conditioner is designed flexibly to an extended angle, which helps to increase the flow of cold air blown out, significantly increases the cooling capacity. Fan mode, wind direction with wide angle shall cool faster, increase exposure to cool air to all corners of the room, save energy and bring the most comfortable feeling for users.
Quiet operation
The noise level of the Funiki air conditioner motor during operation is reduced to only 25dB, equivalent to the silence in a library. As a result, the whole family has a good night's sleep without being disturbed by noises coming from the air conditioner.
3079/2936
Capacity: Cooling/Heating (W)
R32/530
Refrigerant
3.1
Cooling Seasonal Performance Factor (CSPF)
≤ 15m² ( < 45 m³)
Usable area
Detailed product parameters: Wall-mounted Air Conditioner Heating&Cooling HSH 10TMU 2022
| Model | HSH 10TMU |
| Type | Cooling&Heating |
| Usable Area | ≤ 15m² ( < 45 m³) |
| Parameters | Unit | HSH 10TMU | |
| Type | Cooling&Heating | ||
| Refrigerant/weight | R32/530 | ||
| Capacity | Cooling | W | 3079 |
| Heating | 2936 | ||
| Cooling Seasonal Performance Factor (CSPF) | 3,1 | ||
| Powersupply | Phase | 1 Ph | |
| Rated Current (Cooling) | A | 4,9 | |
| Rated Current (Heating) | 4,6 | ||
| Input (Cooling) | W | 1055 | |
| Input (Heating) | 924 | ||

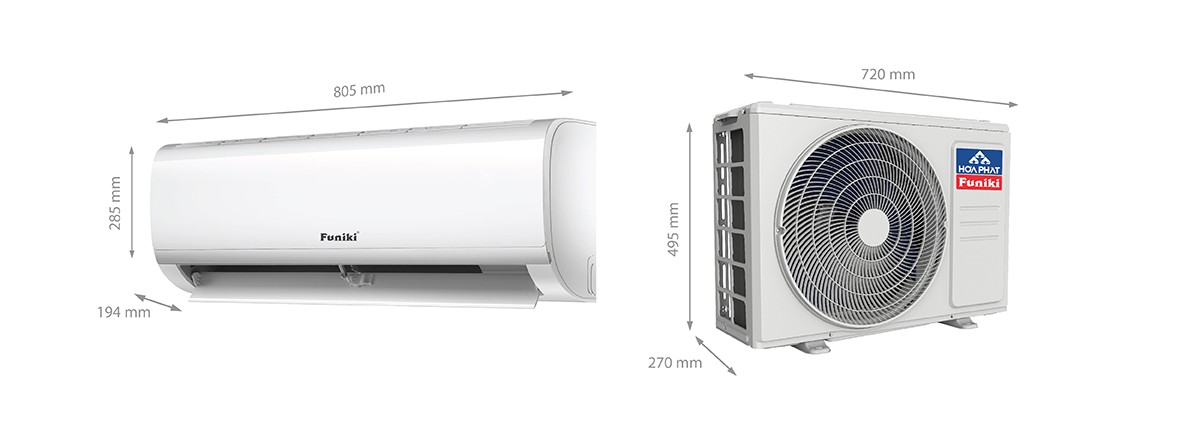

| Product dimension (WxDxH) | Indoor Unit | mm | 805x194x285 |
| Outdoor Unit | 720x270x495 | ||
| Packing dimension (WxDxH) | Indoor Unit | mm | 870x270x365 |
| Outdoor Unit | 835x300x540 | ||
| Weight (Net/Gross) | Indoor Unit | kg | 8.1/10.3 |
| Outdoor Unit | 25.6/27.4 | ||
| Refrigerant piping | Liquid Side | mm | 12,7 |
| Gas Side | 6,35 | ||
| Indoor Air Flow (High/Medium/Low) | m³/h | 540/420/340 | |
| Gas pipeline limit | Standard pipe length | m | 3 |
| Max. pipe length | m | 15 | |
| Max. different in level | m | 5 | |
| Power supply (Indoor/Outdoor unit) | Indoor Unit | ||
